Overview

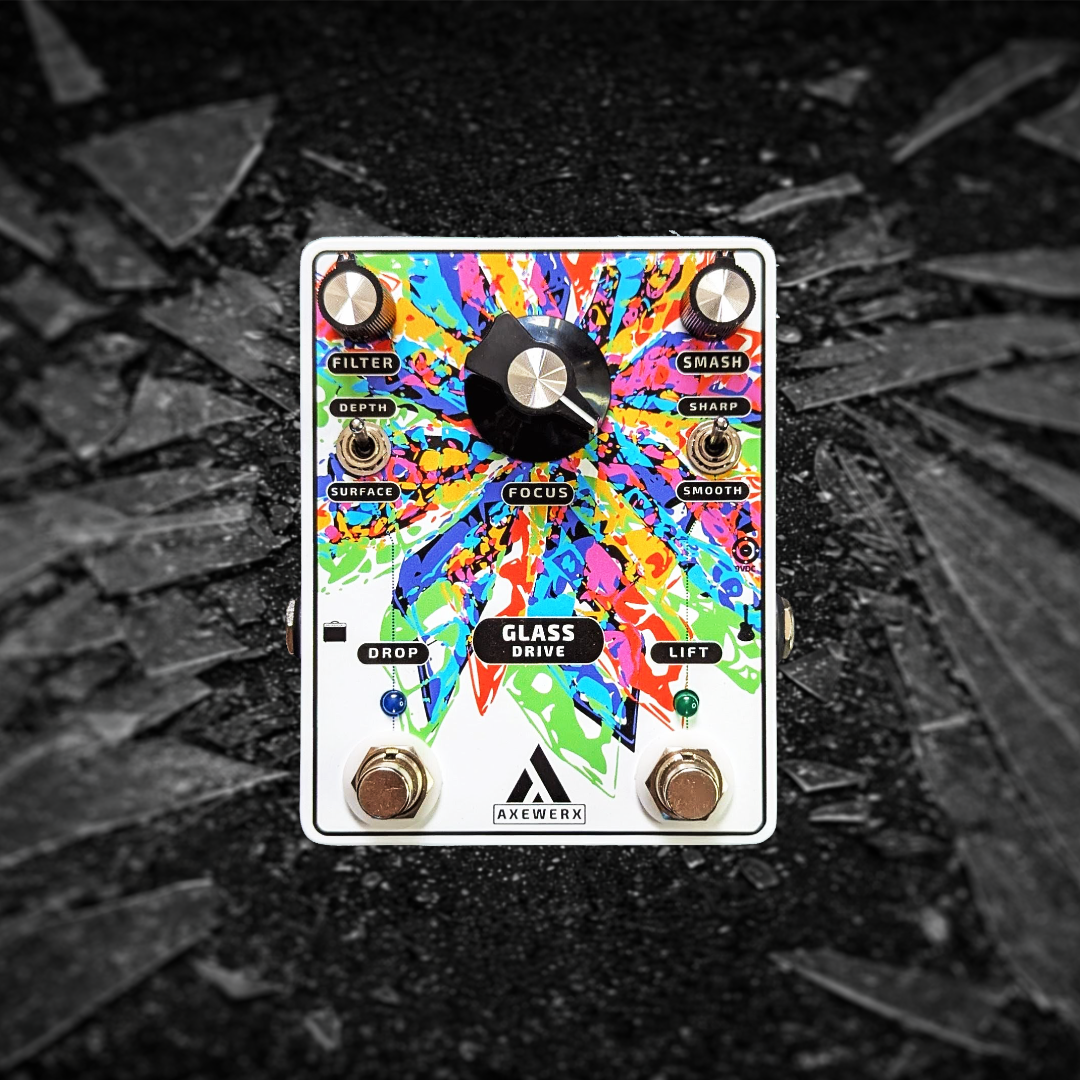

Filthy & flexible dual-stage octave dirt A custom-made analog pedal (with one digital chip...shhh). Breadboarded, refined, designed, and assembled by hand on a custom PCB. Built to deliver two radically different flavors of octave-driven tone in one enclosure.

Features

• Dual-stage octave dirt with two independent channels
• Buffered input for signal stability and clarity
• Right side: Octave up harmonic distortion with toggle to engage or bypass octave effect
• Left side: Octave down, with selectable -1 and -2 octaves
• Both channels can be engaged independently or stacked together
• Active mixer stage blends the two channels
• Tone control shaping ("FILTER")
• FOCUS control trims each effect path and blends in clean signal
• Master volume control for output leveling ("SMASH")
• Custom PCB and hand-built assembly
• UV-printed enclosure graphics
• Carefully selected components for expressive octave textures
• Designed for sounds ranging from octave-up fuzz to sub-octave rumble

Specifications

More About The Pedal

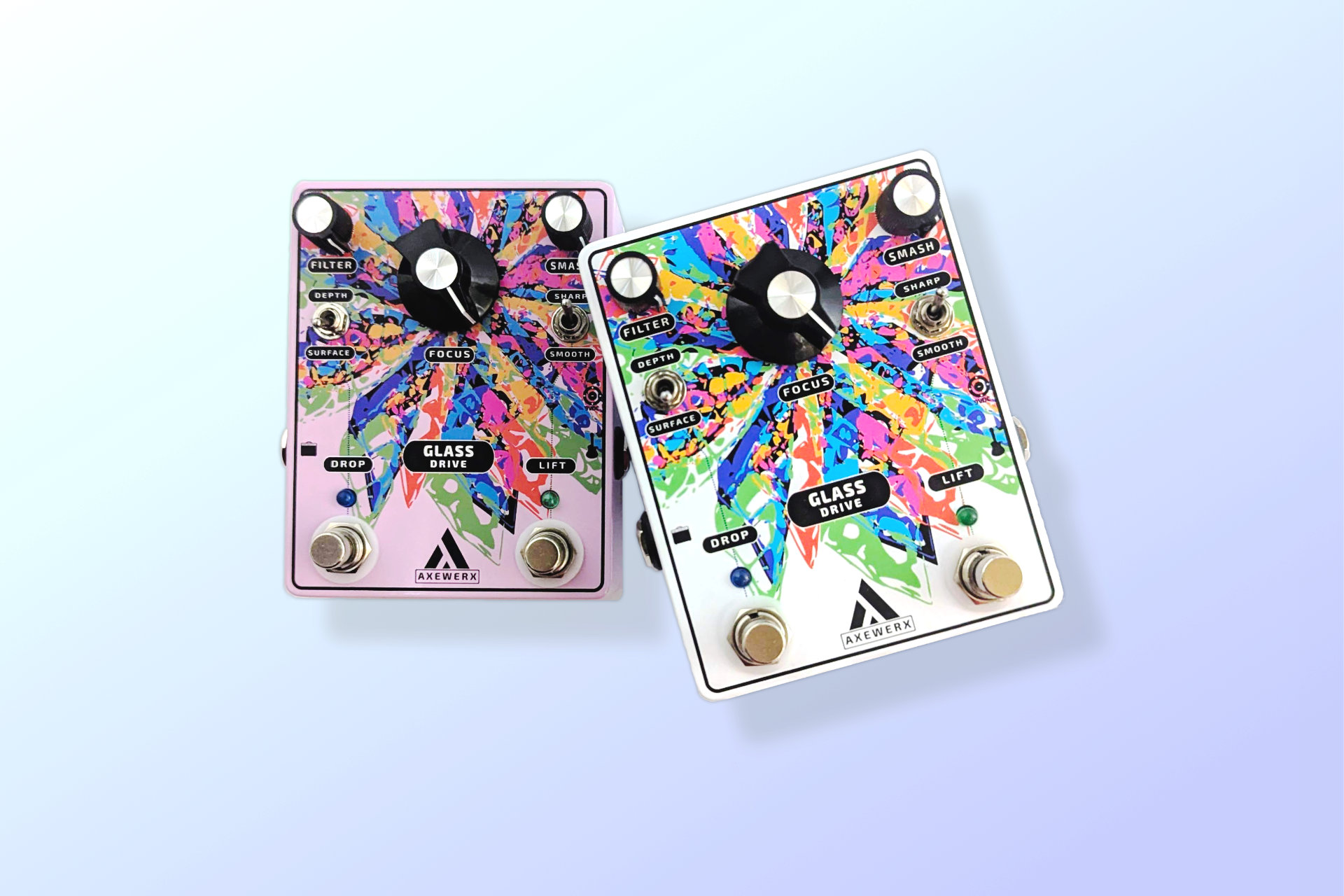

Each unit is assembled, measured, and tested by hand to ensure consistent response and long-term reliability. Input/Output/Power sections are separated on their own PCB from the primary effect circuits, for high circuit fidelity and ease of repair.

Demo

Here are some demos of the pedal. Check out Axewerx on Instagram for more demos.
